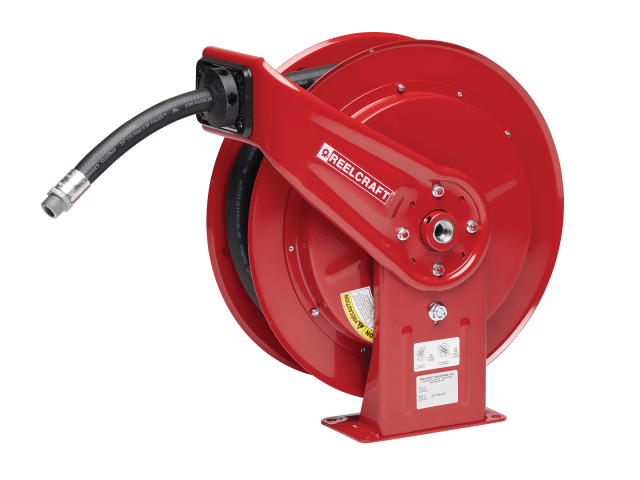

PART# FD83075OLP FD83075 OLP - 3/4"X75' Ultimate Duty Fuel Reel - Hose Included

Reelcraft's spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FD80000 reels are supplied with our ball-bearing style swivel.

Details:

• Hose End: 3/4 inch Male NPTF
• Hose I.D.: 3/4 inch
• Hose Included: Yes
• Hose Length: 75 ft
• Hose Outside Diameter: 1.188 inch
• Inlet: 3/4 inch Female NPTF
• Manufacturer: ReelCraft
• Maximum Temperature: 150 deg F
• Outlet: 3/4 inch Female NPTF
• Pressure Rating: 50 psi
• Series: F80000
