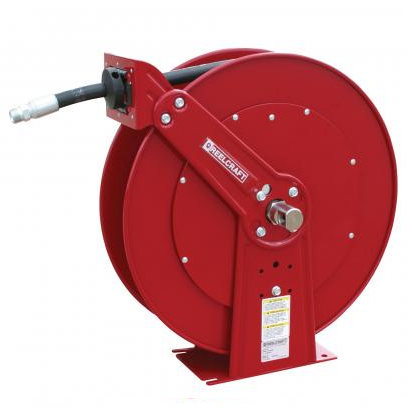

PART# D84050OMP D84050 OMP - 1" X 50' Ultimate Duty Hose Reel

Reelcraft’s Series 80000 spring retractable hose reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. The reels all-steel construction and baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of applications. Series D80000 hose reels are also supplied with Reelcraft’s ball-bearing style swivel.

Details:

• Hose End: 1 inch NPT(M)
• Hose I.D.: 1 inch
• Hose Included: Yes
• Hose Length: 50 ft
• Hose Outside Diameter: 1.400 inch
• Inlet: 1 inch NPT(F)
• Manufacturer: ReelCraft
• Maximum Temperature: 210 F
• Outlet: 1 inch NPT(F)
• Pressure Rating: 1275 psi
• Series: 80000

Construction
Reinforced steel – The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
